SuperNeurone

€1,390.00 excl. VAT

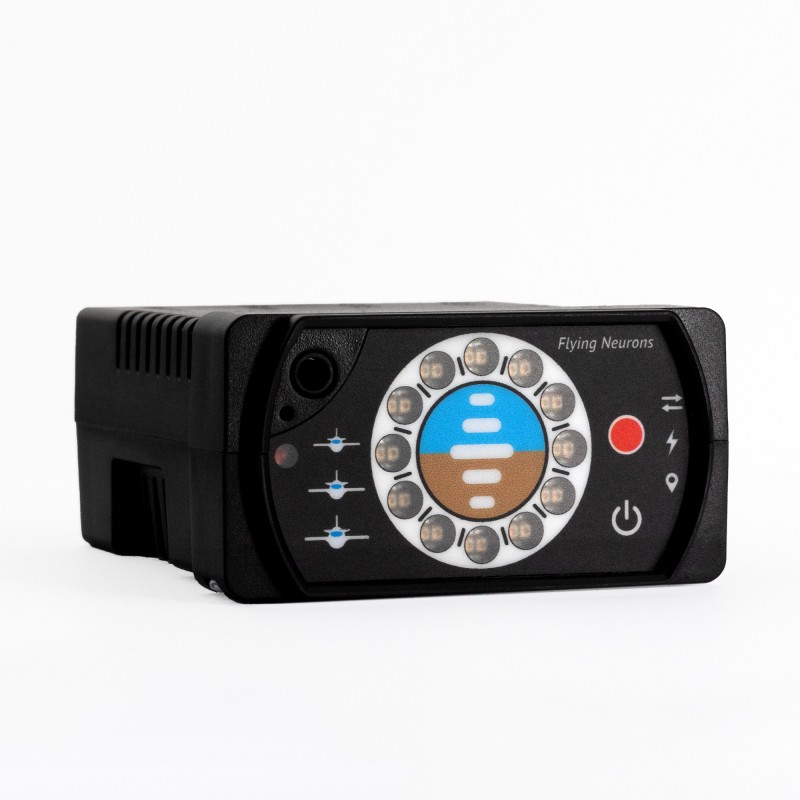

The SuperNeurone: our e-conspicuity and anti-collision system

It detects other aircraft and continuously signals your presence via radio using all standards (FLARM, ADS-B, Neurone and ADS-L ready).
It can be used in Nomade mode (on your dashboard) or integrated and connected to your onboard instruments such as radio, traffic display, transponder. It has Wi-Fi to connect to your navigation App and Bluetooth for our SuperNeuroFly App.

It comes with its antennas, dashboard integration bracket, and charging cable

The SuperNeurone is ready to use in nomade mode.

Order the harness and Smart Connectors to connect the SuperNeurone to your instruments if needed

See our configurator

Quantity

The SuperNeurone comes with the following accessories:

  • USB charging cable
  • FLARM dipole antenna
  • Neurone/ADS-L dipole antenna
  • ADS-B in dipole antenna
  • Velcro mounting straps
  • 57mm diameter bracket with screws
  • Harness removal tool
  • Quickstart
Dimensions 80 * 63 * 32 mm
Weight 115 g
Antennas
  • 4 SMA connectors: ADS-B IN, FLARM IN/OUT, NEURONE/ADS-L IN/OUT, GNSS
  • 1 internal: GNSS
Receivers (Radio Traffic) ADS-B, FLARM, NEURONE/ADS-L
Transmitter (Radio Traffic) ADS-B (via transponder), FLARM, NEURONE/ADS-L
Connections RS232 , Serial Port, Wi-Fi , Bluetooth LE
Battery life 10 hours
Charging 5V USB or 6-32V with "Smart Connector"
1 A maximum
Connectors 2 RS232, Audio, charging, siren, GPIO
Interfaces Bluetooth, Wi-Fi, GDL90, RS232
GNSS GPS, GLONASS, BEIDOU, GALILEO
Sensors Acceleration / Compass / Pressure / Temperature
Voice Mono
Languages : English or French (with optional voice module)
FN_PDT_0101
